Product Summary
The 593d227x96r3d2te3 is a Solid Tantalum Chip Capacitor which is designed for Switch Mode Power Supplies and Converters.
Parametrics
Absolute maximum ratings: (1)Operating Temperature: - 55℃ to + 85℃ (To +125℃ with voltage derating.); (2)Capacitance Range: 0.47μF to 680μF; (3)Capacitance Tolerance: ± 20%, ± 10% standard; (4)Compliant Terminations 100% Surge Current Tested (C, D, & E Case Sizes); (5)Voltage Rating: 4 WVDC to 50 WVDC.
Features
Features: (1)Molded case available in five case codes; (2)Compatible with "High Volume" automatic pick and place equipment; (3)High Ripple Current carrying capability; (4)Low ESR; (5)Meets EIA 535BAAE and IEC Specification QC300801/US0001.

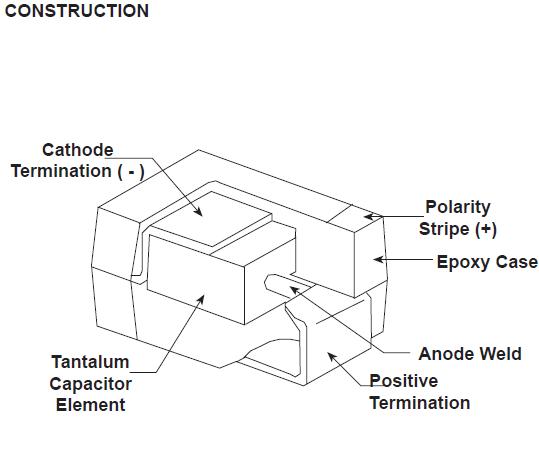

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

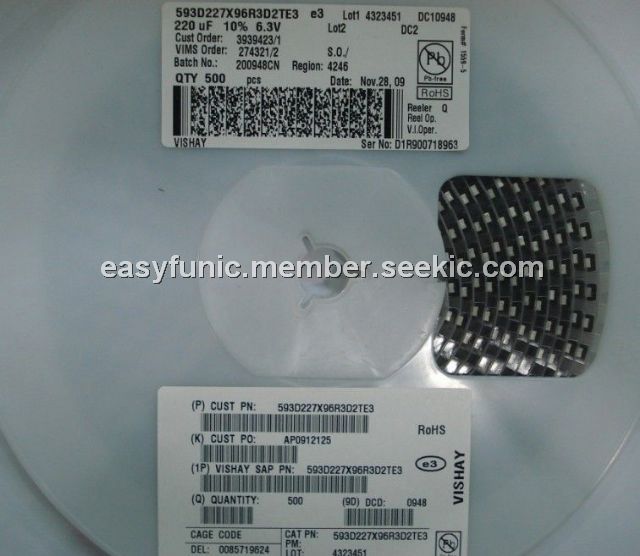

 593D227X96R3D2TE3 |
Vishay/Sprague |
Tantalum Capacitors - Solid SMD 220uF 6.3volts 10% D case Molded |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
593D105X0020A2TE3 |
|
CAP TANT 1UF 20V 20% 1206 |
Data Sheet |
|
|
||||||||||||
|
593D105X0025A2TE3 |
|
CAP TANT 1UF 25V 20% 1206 |
Data Sheet |
|
|
||||||||||||
|
593D105X0035A2T |
Vishay/Sprague |
Tantalum Capacitors - Solid SMD 1uF 35volts 20% A case Molded |
Data Sheet |
|
|
||||||||||||
|
593D105X0035A2TE3 |
Vishay/Sprague |
Tantalum Capacitors - Solid SMD 1uF 35volts 20% A case Molded |
Data Sheet |
|
|
||||||||||||
 |
593D105X0035B2TE3 |
|
CAP TANT 1UF 35V 20% 1411 |
Data Sheet |
|
|
||||||||||||
 |
593D105X0050C2TE3 |
|
CAP TANT 1UF 50V 20% 2312 |
Data Sheet |
|
|
||||||||||||
