Product Summary

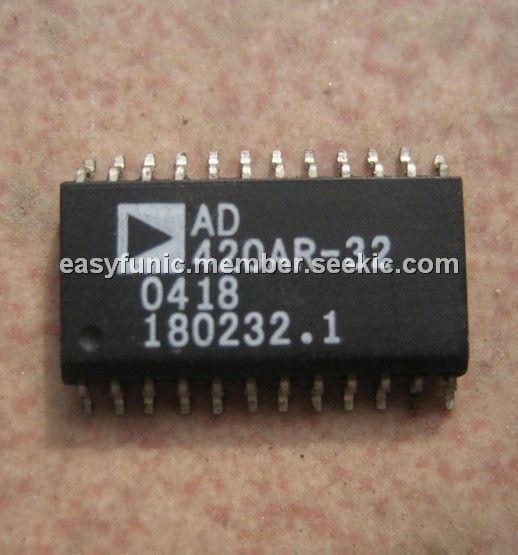

The AD420AR-32 is a complete digital to current loop output converter. It is designed to meet the needs of the industrial control market. It provides a high precision, fully integrated, low cost single-chip solution for generating current loop signals in a compact 24-lead SOIC or PDIP package.
Parametrics
Absolute maximum ratings: (1)VCC to GND:32 V; (2)IOUT to GND:VCC; (3)Digital Inputs to GND:–0.5V to +7V; (4)Digital Output to GND:–0.5V to VLL+0.3V; (5)VLL and REF OUT: Outputs Safe for Indefinite Short to Ground; (6)Storage Temperature:–65℃ to +150℃; (7)Lead Temperature (Soldering, 10 sec):+300℃; (8)Thermal Impedance:θJA = 75℃/W.
Features
Features: (1)4 mA–20 mA, 0 mA–20 mA or 0 mA–24 mA Current Output; (2)16-Bit Resolution and Monotonicity; (3)±0.012% Max Integral Nonlinearity; (4)±0.05% Max Offset (Trimmable); (5)±0.15% Max Total Output Error (Trimmable); (6)Flexible Serial Digital Interface (3.3 MBPS); (7)On-Chip Loop Fault Detection; (8)On-Chip 5 V Reference (25 ppm/8C Max); (9)Asynchronous CLEAR Function; (10)Maximum Power Supply Range of 32 V; (11)Output Loop Compliance of 0 V to VCC – 2.5 V; (12)24-Lead SOIC and PDIP Packages.

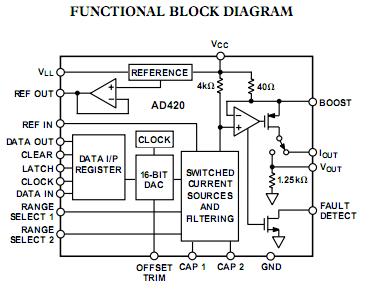

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD420AR-32 |
|
IC DAC SRL 16BIT 24-SOIC |
Data Sheet |
|
|
||||||
|
AD420AR-32-REEL |
|
IC DAC SNGL 16BIT 24-SOIC T/R |
Data Sheet |
|
|
||||||
