Product Summary

The XC3090A-7PQ160C is a Field Programmable Gate Array. It provides a group of high-performance, high-density, digital integrated circuits.

Parametrics

Absolute maximum ratings: (1)Supply voltage relative to GND:–0.5V to +7.0V; (2)Input voltage with respect to GND:–0.5V to VCC +0.5V; (3)Voltage applied to 3-state output:–0.5V to VCC +0.5V; (4)Storage temperature (ambient):–65℃ to +150℃; (5)Maximum soldering temperature (10 s @ 1/16 in.):+260℃; (6)Junction temperature plastic:+125℃; (7)Junction temperature ceramic:+150℃.

Features

Features: (1)Compatible arrays ranging from 1,000 to 7,500 gate complexity; (2)Extensive register, combinatorial, and I/O capabilities; (3)High fan-out signal distribution, low-skew clock nets; (4)Internal 3-state bus capabilities; (5)TTL or CMOS input thresholds; (6)On-chip crystal oscillator amplifier; (7)Over 20 different packages; (8)Plastic and ceramic surface-mount and pin-grid-array packages; (9)Thin and Very Thin Quad Flat Pack (TQFP and VQFP) options; (10)Additional interconnect resources for TBUFs and CE inputs; (11)Error checking of the configuration bitstream; (12)Soft startup holds all outputs slew-rate limited during initial power-up; (13)More advanced CMOS process.

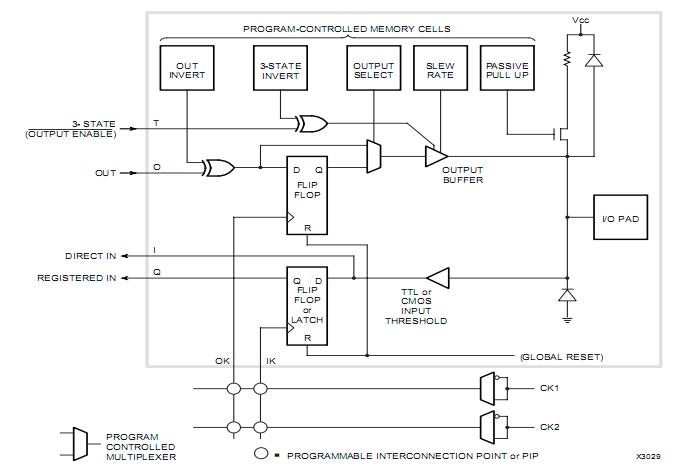

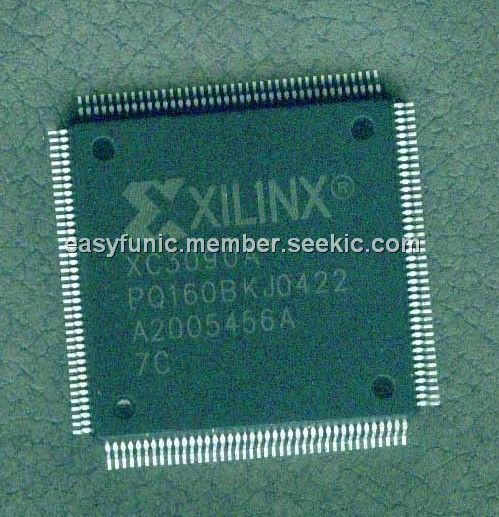

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC3090A-7PQ160C
XC3090A-7PQ160C


IC LOGIC CL ARRAY 9000GAT 160PQF
