Product Summary

The TMS320VC5416ZGU160 is a Fixed-Point Digital Signal Processor. It is based on an advanced modified Harvard architecture that has one program memory bus and three data memory buses.

Parametrics

Absolute maximum ratings: (1)Supply voltage I/O range:-0.3V to 4.0V; (2)Supply voltage core range:-0.3V to 2.0V; (3)Input voltage range:-0.3V to 4.5V; (4)Output voltage range:-0.3V to 4.5V; (5)Operating case temperature range:-40℃ to 100℃; (6)Storage temperature range:-55℃ to 150℃.

Features

Features: (1)16K × 16-Bit On-Chip ROM Configured for Program Memory; (2)Enhanced External Parallel Interface (XIO2); (3)Single-Instruction-Repeat and Block-Repeat Operations for Program Code; (4)Block-Memory-Move Instructions for Better Program and Data Management; (5)Instructions With a 32-Bit Long Word Operand; (6)Instructions With Two- or Three-Operand Reads; (7)Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Memory Bus; (8)40-Bit Arithmetic Logic Unit (ALU) Including a 40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators; (9)17- × 17-Bit Parallel Multiplier Coupled to a 40-Bit Dedicated Adder for Non-Pipelined Single-Cycle Multiply/Accumulate (MAC) Operation.

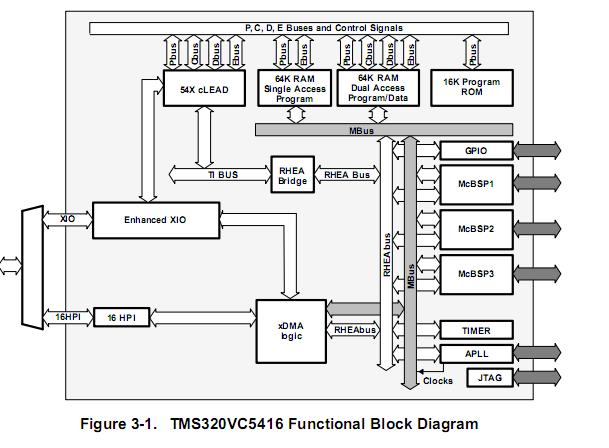

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

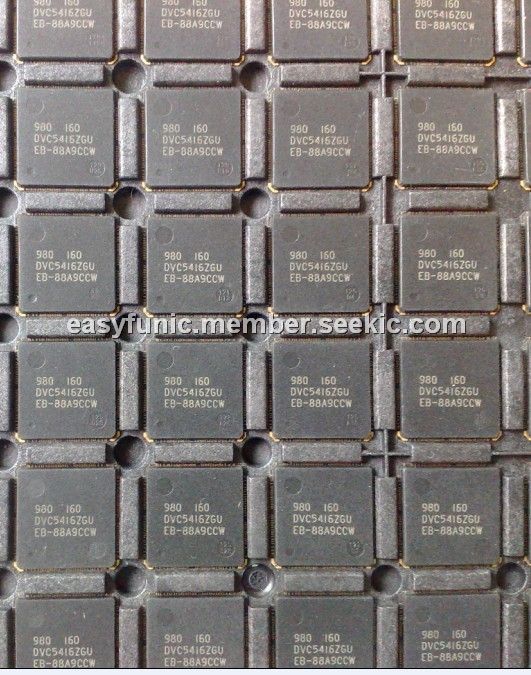

TMS320VC5416ZGU160
TMS320VC5416ZGU160

Texas Instruments

Digital Signal Processors & Controllers (DSP, DSC) Digital Signal Proc

Data Sheet

0-116: $22.84
116-250: $22.19
