Product Summary

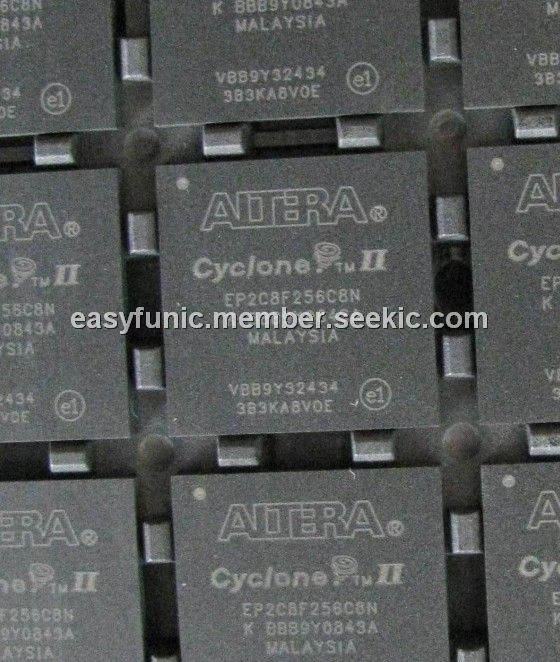

The EP2C8F256C8N is a low-cost FPGA. It provides up to 622 usable I/O pins and up to 1.1 Mbits of embedded memory.
Parametrics
Absolute maximum ratings: (1)Supply voltage:–0.5V to 1.8V; (2)Output supply voltage:–0.5V to 4.6V; (3)PLL supply voltage:–0.5V to 1.8V; (4)DC input voltage :–0.5V to 4.6V; (5)DC output current, per pin:–25mA to 40mA; (6)Storage temperature No bias:–65℃ to 150℃; (7)Junction temperature BGA packages under bias:125℃.
Features
Features: (1)Up to 150 18 × 18 multipliers; (2)Up to 1.1 Mbit of on-chip embedded memory; (3)High-speed interfaces to external memory; (4)M4K embedded memory blocks; (5)Up to 1.1 Mbits of RAM available without reducing available logic; (6)4,096 memory bits per block (4,608 bits per block including 512 parity bits); (7)Byte enables for data input masking during writes; (8)Up to 260-MHz operation; (9)Programmable bus-hold feature; (10)Programmable output drive strength feature; (11)Programmable delays from the pin to the IOE or logic array; (12)I/O bank grouping for unique VCCIO and/or VREF bank settings.

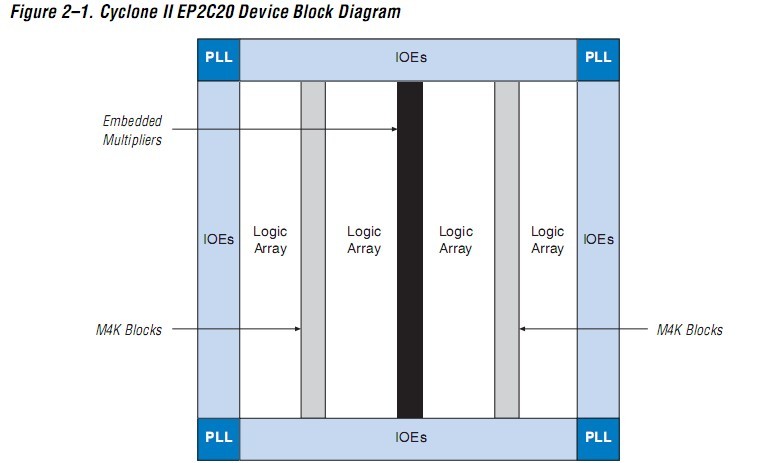

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP2C8F256C8N |
|
IC CYCLONE II FPGA 8K 256-FBGA |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
EP2C15AF256C6N |
|
IC CYCLONE II FPGA 15K 256-FBGA |
Data Sheet |
|
|
||||||
|
EP2C15AF256C7N |
|
IC CYCLONE II FPGA 15K 256-FBGA |
Data Sheet |
|
|
||||||
|
EP2C15AF256C8N |
|
IC CYCLONE II FPGA 15K 256-FBGA |
Data Sheet |
|
|
||||||
|
EP2C15AF256I8N |
|
IC CYCLONE II FPGA 15K 256-FBGA |
Data Sheet |
|
|
||||||
 |
EP2C15AF484C6N |
|
IC CYCLONE II FPGA 15K 484-FBGA |
Data Sheet |
|
|
||||||
|
EP2C15AF484C7N |
|
IC CYCLONE II FPGA 15K 484-FBGA |
Data Sheet |
|
|
||||||
