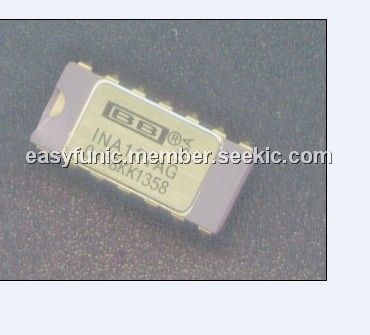

Product Summary

The INA101AG is a high accuracy instrumentation amplifier designed for low-level signal amplification and general purpose data acquisition. Three precision op amps and laser-trimmed metal film resistors are integrated on a single monolithic integrated circuit.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Power Dissipation: 600mW; (3)Input Voltage Range: ±VCC; (4)Output Short Circuit (to ground): Continuous; (5)Operating Temperature M, G Package:. –55℃ to +125℃, P, U Package: –25℃ to +85℃; (6)Storage Temperature M, G Package: –65℃ to +150℃, P, U Package: –40℃ to +85℃; (7)Lead Temperature (soldering, 10s) M, G, P Package: +300℃; (8)Lead Temperature (wave soldering, 3s) U Package: +260℃.

Features

Features: (1)low drift: 0.25μV/℃ max; (2)low offset voltage: 25μV max; (3)low nonlinearity: 0.002%; (4)low noise: 13nV/√Hz; (5)high CMR: 106dB AT 60Hz; (6)high input impedance: 1010Ω; (7)14-PIN plastic, ceramic DIP, SOL-16, and TO-100 packages.

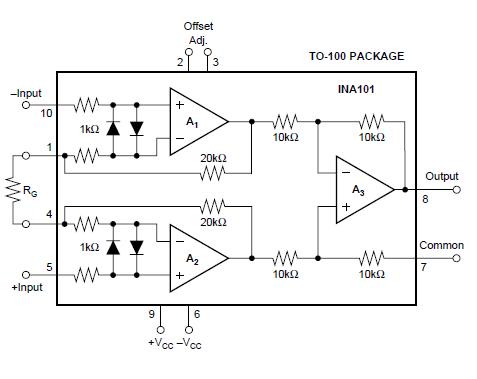

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
INA101AG
INA101AG
Texas Instruments
Instrumentation Amplifiers Very High Accuracy Instrumentation Amp
Data Sheet
0-1: $28.47
1-25: $24.64
25-100: $23.09
100-250: $21.57
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
INA101
INA101
Other

Data Sheet
Negotiable
INA101AG
INA101AG
Texas Instruments
Instrumentation Amplifiers Very High Accuracy Instrumentation Amp
Data Sheet
0-1: $28.47
1-25: $24.64
25-100: $23.09
100-250: $21.57
INA101AM
INA101AM
Texas Instruments
Instrumentation Amplifiers Very High Accuracy Instrumentation Amp
Data Sheet
0-1: $23.66
1-25: $20.12
25-100: $18.69
100-250: $17.15
INA101CM
INA101CM
Texas Instruments
Instrumentation Amplifiers Very High Accuracy Instrumentation Amp
Data Sheet
0-67: $25.46
67-100: $24.30
100-250: $22.93
INA101HP
INA101HP
Texas Instruments
Instrumentation Amplifiers Very High Accuracy Instrumentation Amp
Data Sheet
0-1: $11.03
1-25: $10.54
25-100: $7.91
100-250: $7.76
INA101HPG4
INA101HPG4
Texas Instruments
Instrumentation Amplifiers Very High Accuracy Instrumentation Amp
Data Sheet
0-1: $11.40
1-25: $9.70
25-100: $7.91
100-250: $7.76
